Large Asset Thermal Mapping System
Generation
Transmission & Distribution
Transmission & Distribution
Real-time thermal mapping of critical processes and systems to optimize generation output and avoid forced outages.
(Below)
Transmission & Distribution
Transmission & Distribution
Transmission & Distribution
Real-time thermal mapping of critical T&D assets (transformers, cables, substations) to avoid overload and forced outages.
(below)
Grid Scale Energy Storage
Transmission & Distribution
Grid Scale Energy Storage
Real-time thermal mapping of grid scale energy storage assets (batteries, other) to prevent overheating and avoid fire risks.
(below)
Large Asset Optical Thermal Mapping System
The Fiber is the Sensor

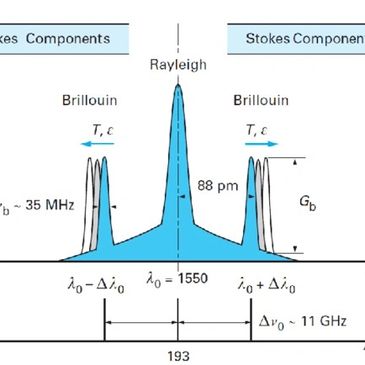

Stimulated Optical Brillouin Scattering Principle
Temperature Mapped Along Fiber Length
10 - 20 km fiber loop single channel
Resolution 1 meter along fiber; Accuracy +/- 1%
Programmable Zones; IoT enabled
Fast Sampling for Real-time applications
Temperature Mapped Along Fiber Length
Stimulated Optical Brillouin Scattering Principle
Temperature Mapped Along Fiber Length
-50 deg C to +500 deg C ; Accuracy 1 deg C
Strain ; Accuracy 0.1%
Fiber embedded or External
Data Store; IOT enabled; Analytics
Stimulated Optical Brillouin Scattering Principle
Stimulated Optical Brillouin Scattering Principle
Stimulated Optical Brillouin Scattering Principle
Scattering shift is proportional to temperature
No predetermined Bragg gratings/placements
Synchronized data set sampled whole fiber
